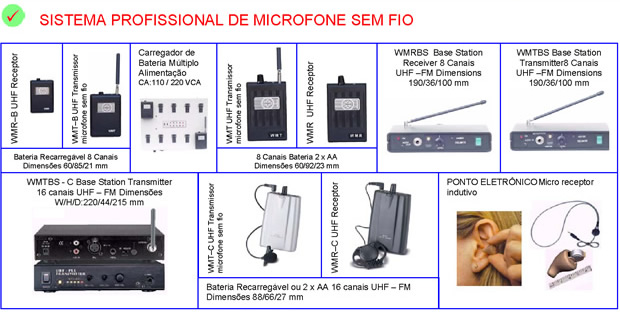

WMRBS
BASE
STATION RECEIVER |
|
|
|
||
 |
WMTBS
BASE STATION TRANSMITTER Carrier Frequency: 400 to 500 Mhz Oscillator: PLL Synthesizer Channels: 8 pré-programmed Type of Emission: FM Antenna integral: W / Output cable Input Connector: 1/4 Monophone Jack Reference Deviation: +/-75Khz Frequency Response: 100 Hz to 15 KHz RF Output: 50 mW spurious: < 60db S/N Ratio: >110dB Operating Voltage: 12 VDC Dimensions W/H/D: 190 /36/100 m/m Weight: 200g |
|
|
|
||
 |
WMT
MICROPHONE BODY PACK TRANSMITTER Carrier Frequency: 400 to 500 Mhz Oscillator: PLL Synthesizer Channels: 8 pré-programmed Type of Emission: FM Antenna integral: W / Output cable Input Connector: 3,5 mm Jack Reference Deviation: +/-75Khz Frequency Response: 100 Hz to 15 KHz RF Output: 50 mW spurious: < 60db S/N Ratio: >110dB Operating Voltage: 3V (2AA size) Dimensions W/H/D: 60/92/23 mm Weight: 100g |
|
|
|
||
 |
WMR
BODY PACK RECEIVER Receiving Frequency: 400 to 500 Mhz Oscillator: PLL Synthesizer Channels: 8 pré-programmed Type of Reception: FM Image Rejection: >70dB Reference Deviation: +/- 75 KHz T.H.D.: < 1% Pre Emphasis: 50 us Frequency Response: 100Hz to 15 KHz Audio Output: 0,2 W at 32 ohms Output Connector: 3,5 mm Jack Operating Voltage: 3V (2AA Type) Dimensions W/H/D: 60/92/23 m/m Weight: 100g |
|
|
|
||
 |
 |
MINIATURE
WIRELESS RECEIVER / PONTO ELETRÔNICO Microcall is a miniature inductor receiver, long-range cuing system providing a performer with first quality auditory assistance. It is simple and easy to use the prompters wears the WMT wireless microphone transmitter. The performer wears the WMR companion receiver and neck-loop transdutor that transmits the audio to the Microcall inductor receiver comfortably concealed in the ear. Application: personal cuing, professional studio communication and security agent. |
|
|
||
 |
CONFERENCE
SPEAKERPHONE The fullduplex communication of Conference Speakerphone using the DSP technology offers a communicative quality other than half-duplex communication that interfering noise always exists, the advanced DSP algorithim has the features of echo cancellation and suppression of environmental noise it has Three built-in microphones offers a 360 degree of coverage and it has the option to use two extension microphones. The RCA audio jack supports a record, standard phone lines pabx system can be easily fitted with this system. |
|
|
|
||
 |
PERSONAL
WIRELESS PA SYSTEM/ MEGAFONE SEM FIO Receiving Frequency:160 to 250 Mhz Oscillator: Quartz Controlled Type of Reception: FM Image Rejection: >70dB Reference Deviation: +/- 15 KHz T.H.D.: < 1% Pre Emphasis: 50 us Frequency Response: 100Hz to 15 KHz Power Output: 20 W at 4 ohms Speaker: Built in 5´´ Output Connector: 3,5 mm Jack Input connector: Monophone Jack Operating Voltage: 12V rechargeable battery Dimensions W/H/D: 160/178/285 m/m Weight: 2,95 Kgs |
|
|
|
||
 |
MICROPHONE
BODY PACK TRANSMITTER HANDHELD WIRELESS MICROPHONE Carrier Frequency:160 to 250 Mhz Oscillator: Quartz Controlled Type of Emission: FM Antenna Integral: Built in Deviation: +/- 15 KHz Frequency Response: 100Hz to 15 KHz RF Output: 30mW Spurious: <60dB S/N Ratio: >110dB Operating Voltage: 9 VDC Dimensions W/H/D: 60/105/20 m/m Weight: 100 g |
|
|
|
||
 |
 |
|
